Mfg#: 5110062 | SKU: 007-09-1313
Vendor Name: W R MEADOWS
Categories: ,

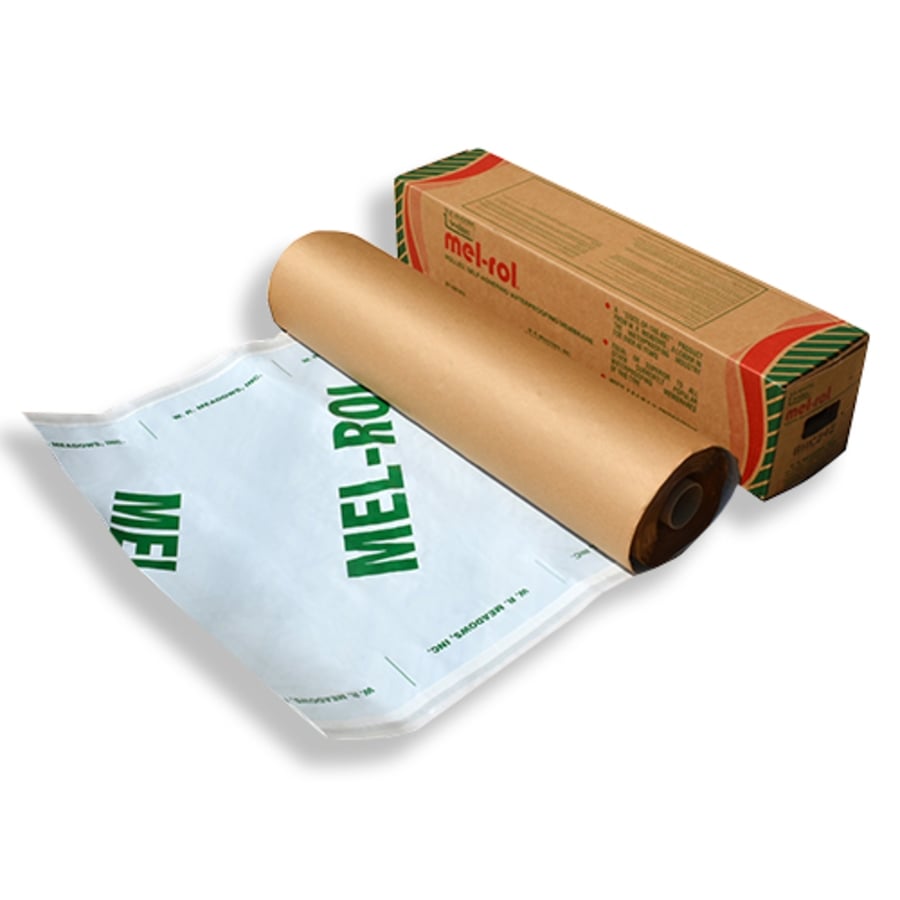

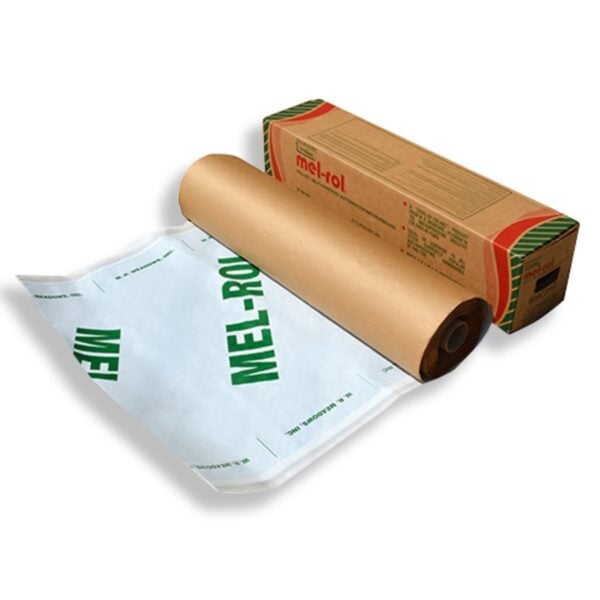

MEL-ROL waterproofing system is a flexible, versatile, dependable, bituminous, roll-type waterproofing membrane. It is a 60 mil-membrane composed of a nominally 56 mil thick layer of polymeric waterproofing membrane on a heavy duty, four-mil thick, cross-laminated polyethylene carrier film. The two components are laminated together under strict quality-controlled production procedures. W. R. MEADOWS accessory products included in the MEL-ROL waterproofing system are: BEMMEL-ROL LIQUID MEMBRANE, MEL-PRIME adhesive (solvent-based and water-based), POINTING MASTICDETAIL STRIPCATALYTIC BONDING ASPHALTTERMINATION BARPROTECTION COURSE and MEL-DRAIN drainage board.


  • Provides cost-effective, flexible, versatile, dependable, positive waterproofing protection against damaging moisture migration and the infiltration of free water.
  • Offers a quick and easy-to-apply system for maximum productivity.
  • Special membrane-to-membrane adhesion provides additional overlap security.
  • Meets or exceeds the test requirements of all currently applicable specifications.
  • Components work together for positive waterproofing protection.
  • Handles with ease on the jobsite.
  • Available in a low temperature version for use when air and surface temperatures are between 20° F (-7° C) and 60° F (16° C). An extra-low temp version is also available, ideal for application in extra-low temperatures down to 0º F (-18º C).


MEL-ROL waterproofing system provides a cost-effective answer to properly waterproof foundations, vertical walls, and below-grade floors in residential and commercial construction. It is equally effective for use as between-the-slab waterproofing on plaza decks, parking decks, and structural slabs. Use it as a waterproofing membrane to isolate mechanical and electronic rooms, laboratories, kitchens, and bathrooms. MEL-ROL offers positive protection when “wrapped around” major rapid transit, vehicular, utility, and pedestrian tunnel projects.   MEL-ROL can also be used on insulated concrete forms (ICF).  MEL-ROL can be applied to concrete, masonry surfaces, wood, insulated wall systems, and metal.

Additional information

Weight 68 LBS
Vendor Name W R MEADOWS
